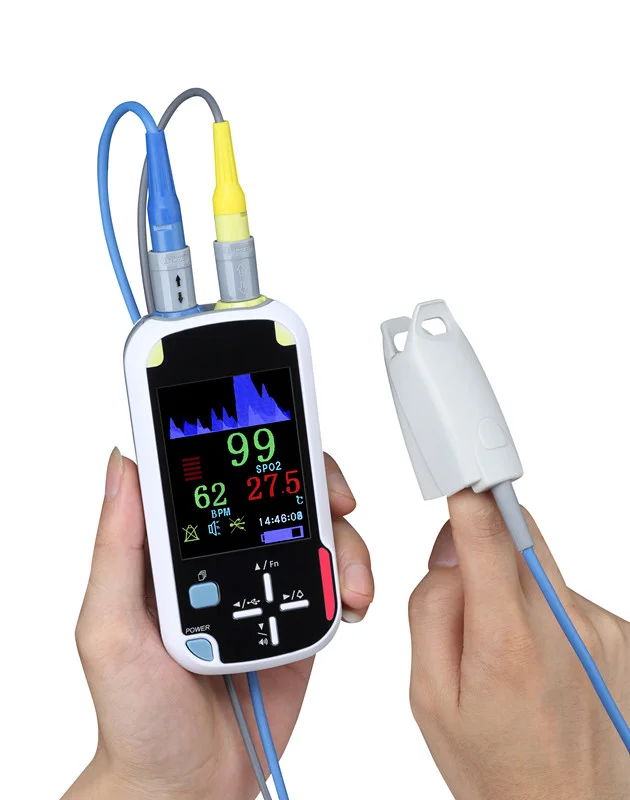

Wireless Bluetooth Handheld Pulse Oximeter

Parameters：

Three Parameters：SPO2、TEMP and Pulse Rate

Waveforms：

Waveform: SPO2 waveform-PLETH

Features：

1 Monitoring SPO2, TEMP, PR & PLETH

2 2.8 inch color TFT LCD in real time display, displayable in big font and big screen

3 BlueTooth wireless is very convenient to realize reviewing the measurements in big screen via connecting PC and to upload history data to PC for review, printing or storage

4 Long time monitoring and sleeping monitoring

5 Storage/Review trend data up to 3888 groups, data save time interval settable

6 Audio and visual alarm when parameters exceeded and sensor-off

7 Built-in rechargeable Li-ion battery, up to 15-hour running time

8 Battery capacity indicator. Automatic shutdown for power saving

Applications：

The oximeter could be applied in the hospital’s operation room, ICU, clinic section office, Out-patient department, sickroom and emergency treatment.

Standard Packing List：

Oximeter main unit 1unit

Adult finger SpO2 sensor 1pc

Skin surface skin TEMP probe 1pc

USB communication cable 1pc

BlueTooth Radio

VSDV/Guardian/BuleTooth Software disk 1 pc

The operator’s manual 1pc

Selectable Accessory:

Pediatric finger/Neonatal Wrap SpO2 sensor

Specifications:

1. General

Monitoring Parameters: SpO2、PR、PLETH、Pulse strength、TEMP

Signal sockets：SpO2 socket、TEMP socket、USB socket(for charge battery and transmit data)

2. Display screen

Type: 240 × 320 dot matrix color TFT LCD screen

Display area: 43mm×58mm

3. Functions

PLETH: The monitor can display PLETH waveform

Intelligent parameter monitoring screen: The monitor automatically selects the parameter measurements to display according to the probes connected to the monitor.

Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off.

Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.

Power saving: The monitor will automatic shut down to save power. The time is settable.

Trend: Storage/Review trend data up to 3888 groups, data save time being set freely

Data storage: The saved data will never be lost even if the monitor is powered off.

Communication: Transmitting the patient’s trend to a PC for display, observation, saving and printing via USB or Bluetooth wireless

4. Electrical specifications

Working Voltage: D.C. 3.7V/3000mAH

AC power adaptor

Input: AC 100 V～240V, 50/60Hz, 5VA

Output: D.C. 5V

Internal battery

Type: D.C. 3.7V/3000mAH Li-ion rechargeable battery

Run Time: 15-hour continuous operation with a new, fully charged battery (environment temperature is 25℃)

Recharge time: 8 hours

5. Environment

Temperature

Operation: 0°C ~ 45 °C

Transportation and storage: -20°C ~ 60 °C

Humidity

Operation: 15% - 95 %( noncondensing)

Transportation and storage: 10% - 95 % (noncondensing)

Altitude

Operation: 86 KPa ~106 KPa

Transportation and storage: 50KPa~106 KPa

6. Parameter Specifications

SpO2

Patient: Adult, pediatric,neonate

Range: 0% - 100%

Resolution: 1 %

Accuracy: 70% - 99%: ±2 %

0% - 69%: Unspecified

PR

Range: 0 bpm ~250bpm

Resolution: 1bpm

Accuracy: ±2bpm

TEMP

Channel: 1

Input: Body surface thermal-sensitive resistor temperature sensor

Range: 0℃～50℃

Resolution: 0.1℃

Accuracy: ±0.2℃
