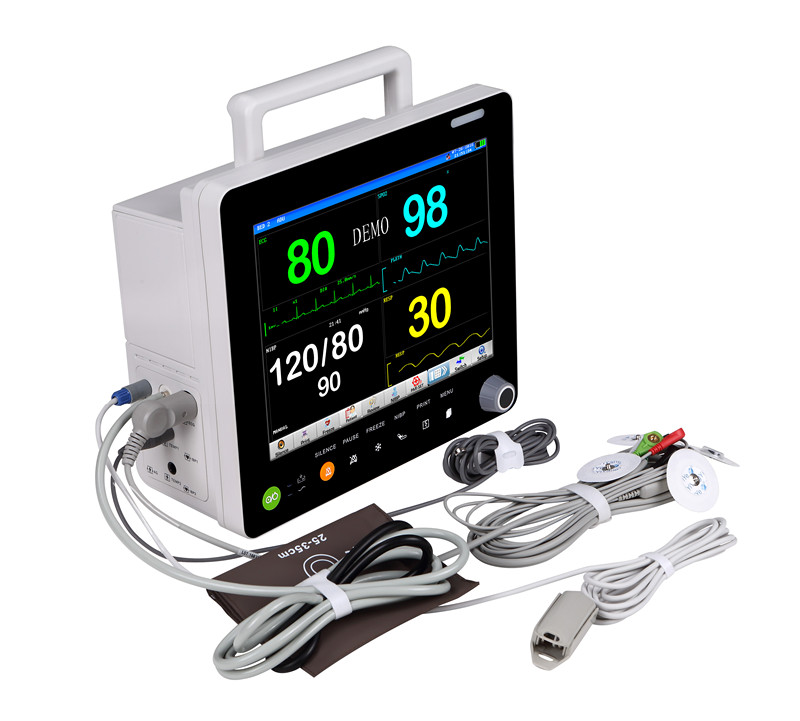

Features:
◆Standard configuration:SPO2,ECG,NIBP,TEMP,Resp
◆12.1inch high brightness, high resolution color TFT LED display
◆Waterproof , fanless design, low energy consumption
◆Built-in rechargeable Li-battery working up-to 5 hours for field monitoring, ambulance and short term transportation
◆Clear bright and Large character display , NIBP measurement review, one-click operation, unique Vector display
◆7 channel ECG waveform display;ST-segment analysis
◆Application:Adult,pediatric,neonate;
working mode: diagnosis,monitor and surgery
◆13 kinds of arrhythmia analysis and 15 kinds of drug dose calculation
◆High-frequency electric surgical knives(300W),defibrillation and ESU protection
◆New SpO2 technology to ensure the accuracy and low perfusion upto 0.2% measurement
◆Intelligent audio and visual alarm function
◆Optional parts:HDMI ;IBP;EtCO2;touch screen
Specifications:
ECG
ECG Cable: Standard 3/ 5 leads
3 Leads：RA、LA、LL，Leads section：I、II、III
5 Leads：RA、LA、LL、RL、V， Leads section：I、II、III/aVR、aVL、aVF/V
Gain selection:´0.25、´0.5、´1、´2
Heart Rate Range:
Adult：15 ～ 300bpm
Children/Infant/Neonate：15 ～ 350 bpm
Accuracy：±1% or ±1bpm
Resolution：1 bpm Sensitivity >200 uV(Peak to peak)
Input Resistance >5(MΩ)
Bandwidth：
Diagnosis ：0.05～130Hz
Monitor：0.5～40Hz
Surgery ：1～20Hz
ST segment deviation analysis:
Range：-0.8 mV～+0.8mV
Accuracy：±2.0mV
NIBP:
Work mode: Manual, Automatic, Continuous
Unit: mmHg, Kpa
Measurement Range:
Adult: SYS: 40～270mmHg
DIA: 10～215mmHg
MEAN:20～240mmHg
Pediatric: SYS:40～200mmHg
DIA: 10～150mmHg
MEAN:20～165mmHg
Neonatal:SYS:40～135mmHg
DIA:10～100mmHg
MEAN:20～110mmHg
Resolution:1mmHg
Measurement Type :SYS,DIA,MEAN
Overpressure protection
Adult: 300mmHg
Pediatric :240mmHg
Infant/Neonate :150mmHg
SpO2
Measurement range:0～100%
Resolution:1%
Accuracy:±2(70～100%)
Pulse rate
Measurment range:20～300bpm
Resolution:1bpm
Accuracy:±3bpm
Respiration：
Measurement Range:
Adult: 2～120BrPM
Child/Infant/Neonate：2～150 BrPM
Resolution：1 BrPM
Accuracy：±2 BrPM
Asphyxiation alarm: 10～40 seconds
Resolution:1BrPM
Accuracy:±2%
TEMP:
Channel Number: 2
Measurement Range: 0～50°C
Resolution : 0.1°C
Accuracy:±0.1°C
Response time: ≤ 3min
Power requirement
Voltage：90～245V AC 50/60Hz
Power Consumption：15W
Battery：14.8V 2200mAH Li- Battery
Battery life: 5 hours
DC: 12～20V/2A
Working Environment：
Operating Temperature:0 ～ 40 (°C)
Transport and Storage Temperature:-20～60 (°C)
Working Humidity ≤ 85 %
Transport and Storage Humidity: ≤ 93 %
