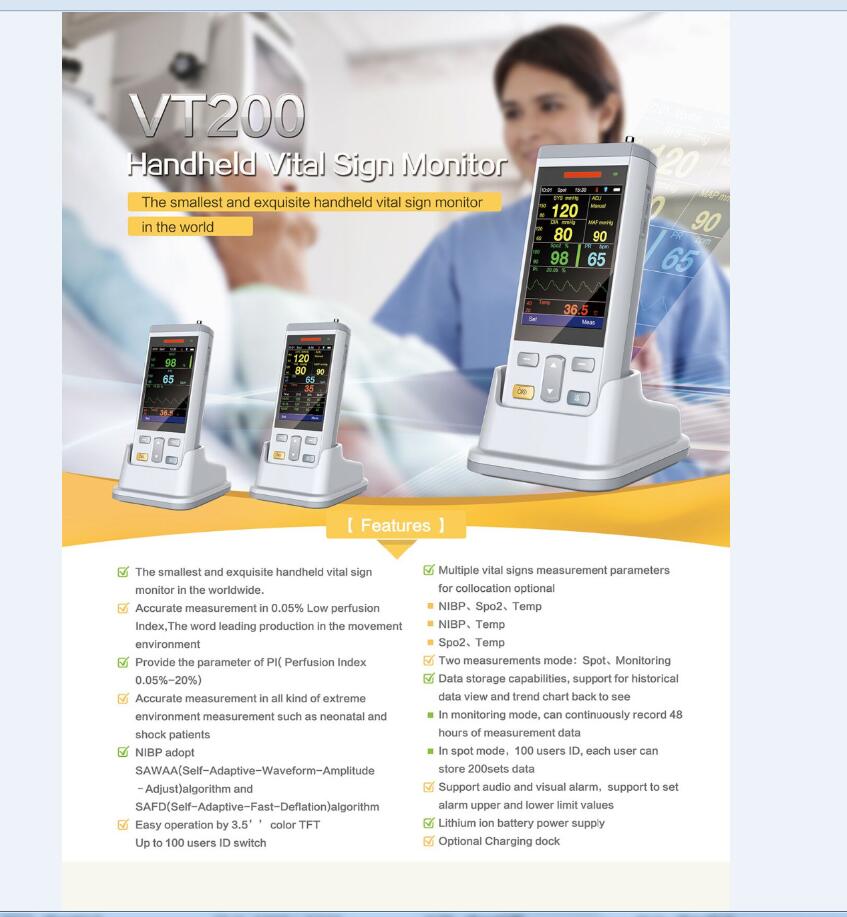

Features
1.The smallest and exquisite handheld vital sign monitor in the worldwide
2.Accurate measurement in 0.05% Low perfusion Index,the world leading production in the movement environment
3.Provide the parameter of PI( Perfusion Index 0.05%-20%)
4.Accurate measurement in all kind of extreme environment measurement such as neonatal and shock patients
5.NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude –Adjust)algorithm and SAFD(Self-Adaptive-Fast-Deflation)algorithm
6.Easy operation by 3.5 inch color TFT
7.Up to 100 users ID switch
8.Two measurements mode:Spot,Monitoring
9.Data storage capabilities, support for historical data view and trend chart back for checking
10.In monitoring mode, can continuously record 48 hours of measurement data
11.In spot mode，100 users ID, each user can store 200sets data
12.Support audio and visual alarm，support to set alarm upper and lower limit values
13.Lithium ion battery power supply
14.With Charging desk

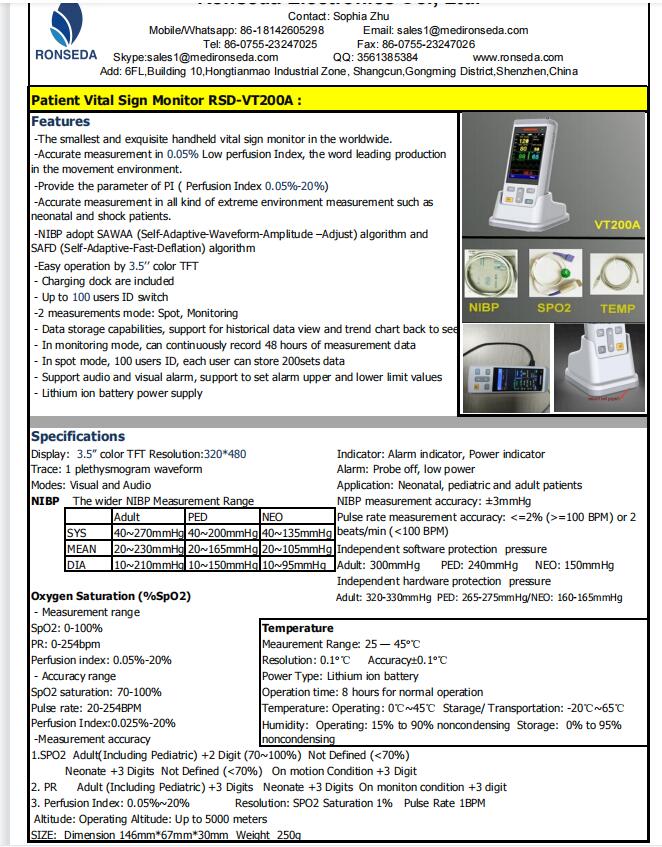

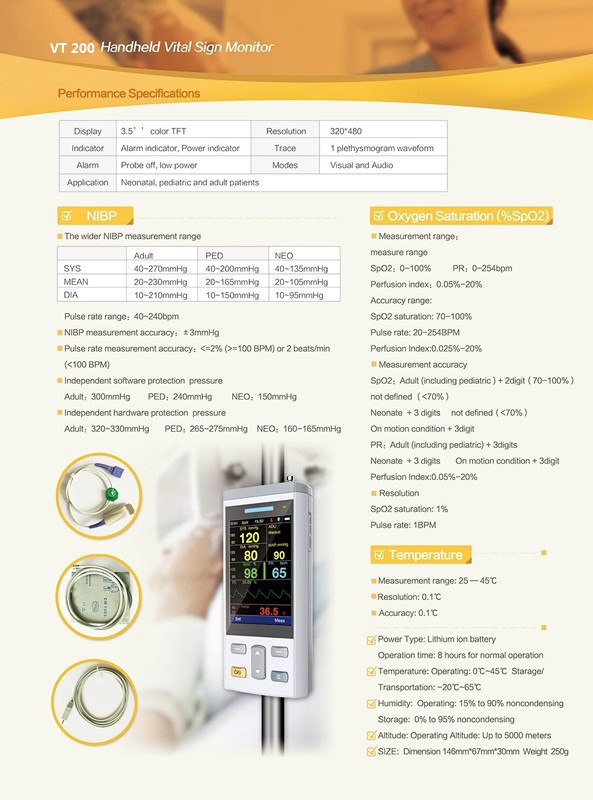

Specifications
Display:3.5 inch color TFT Resolution:320X480
Indicator: Alarm indicator, Power indicator
Trace: 1 plethysmogram waveform
Alarm: Probe off, low power
Modes: Visual and Audio
Application: Neonatal, pediatric and adult patients
NIBP
The wider NIBP measurement range
|
|
Adult |
PED |
NEO |
|
SYS |
40~270mmHg |
40~200mmHg |
40~135mmHg |
|
MEAN |
20~230mmHg |
20~165mmHg |
20~105mmHg |
|
DIA |
10~210mmHg |
10~150mmHg |
10~95mmHg |
Pulse rate range：40~240bpm
NIBP measurement accuracy：±3mmHg
Pulse rate measurement accuracy：<=2% (>=100 BPM) or 2 beats/min (<100 BPM)
Independent software protection pressure
Adult：300mmHg PED：240mmHg NEO：150mmHg
Independent hardware protection pressure
Adult：320-330mmHg PED：265-275mmHg NEO：160-165mmHg
Oxygen Saturation (%SpO2)
Measurement range:
measure range
SpO2：0-100%
PR：0-254bpm
Perfusion index:0.05%-20%
Accuracy range:
SpO2 saturation: 70-100%
Pulse rate: 20-254BPM
Perfusion Index:0.025%-20%
SpO2：
Adult (including pediatric ) + 2digit（70-100％） not defined （<70%）
Neonate + 3 digits not defined（<70%）
On motion condition + 3digit
PR：
Adult (including pediatric) + 3digits
Neonate + 3 digits
On motion condition + 3digit
Perfusion Index:
0.05%-20%
SpO2 saturation: 1%
Pulse rate: 1BPM
Temperature
Measurement range: 25 -45 degree
Resolution:0.1 degree
Accuracy:0.1 degree
Power Type: Lithium ion battery
Operation time: 8 hours for normal operation
Temperature:
Operating: 0-45 degree
Starage/ Transportation: -20-65 degree
Humidity:
Operating: 15% to 90% noncondensing
Storage: 0% to 95% noncondensing
Operating Altitude: Up to 5000 meters
Size
Dimension 146mmX67mmX30mm
Weight 250g
