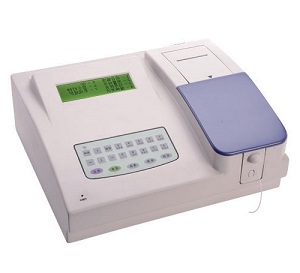

Chemistry Analyzer
RSD-CA3001
Semi-auto Chemistry Analyzer
Details:
Name
Semi automatic chemistry analyzer

Features
1.6 detecting wavelengths: 450-492-510-546-578-630nm
2.Up to 70 test items
3.Analytical modes: end-point, absorbance.
4.Large LCD. menu operation, hospital and patient information editing available
5.Inner thermal-sensitive printer. English comprehensive report available, including refer range
6.Memory for 10000 sample results
7.Few reagent needing, low detecting cost.
8.Open reagents

Test contents
Alanine Aminotransferase(ALT),  Glutamic-oxalacetic Transaminase(AST), Alkalinity Phosphatase(ALP),  Total Bilirubin(TBIL),Direct Bilirubin(DBIL), Total Protein(TP), Albumin(ALB), Urea Nitrogen(URE), Inosine Anhydride(CRE), Triglyceride(TG), Cholesterol(TCHO), Glucose(GLU), Serum Potassium(K), Serum Sodium(Na), Serum Chlorine(CL), Serum Calcium (CA)

Specifications
Display:240X64 LCD
Test project: ≥70
Wavelength: 450,492,510,546,578,630nm
Flow cell: 32uL,quartz glass
Liquid volume: 200-3000uL
Resolution:0.001 Abs(Display),0.0001 Abs( Calculation)
Carry over: <1%
Repeatability: <1%
Memory:10000 sample results
Printer: Internal thermal sensitive printer,58 mm paper width
Data communication: RS 232 serial cable
Temprature:10-30℃
Wet:≤80%
Power supply:220V AC±15%,110V AC±15% ,50-60 Hz 50W
Dimension:380mm (L)X320mm(W) X150mm(H)
Weight:5 KGS
