Parameters：
Three Parameters：SPO2、TEMP and Pulse Rate
Waveforms：
Waveform: SPO2 waveform-PLETH
Features：

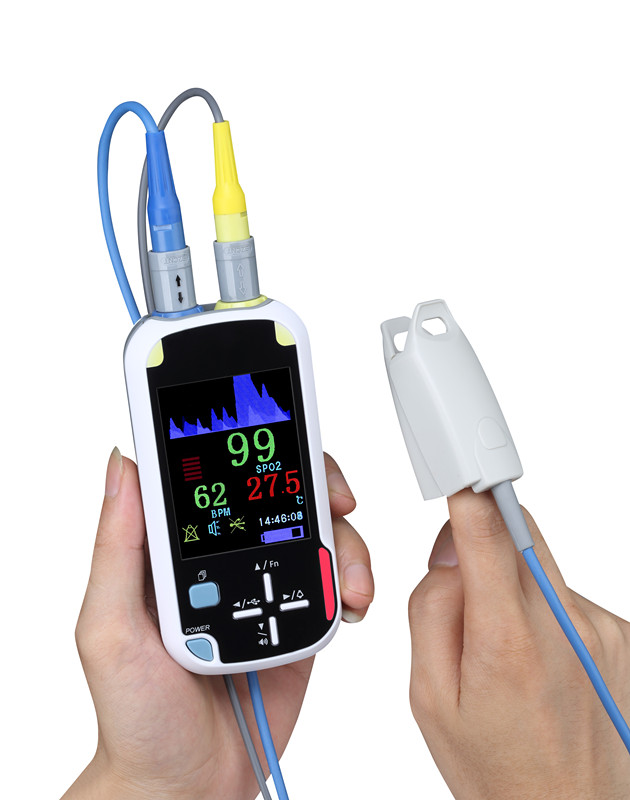

1 Monitoring SPO2, TEMP, PR & PLETH
2 2.8 inch color TFT LCD in real time display, displayable in big font and big screen
3 BlueTooth wireless is very convenient to realize reviewing the measurements in big screen via connecting PC and to upload history data to PC for review, printing or storage
4 Long time monitoring and sleeping monitoring
5 Storage/Review trend data up to 3888 groups, data save time interval settable
6 Audio and visual alarm when parameters exceeded and sensor-off
7 Built-in rechargeable Li-ion battery, up to 15-hour running time
8 Battery capacity indicator. Automatic shutdown for power saving
Applications：
The oximeter could be applied in the hospital’s operation room, ICU, clinic section office, Out-patient department, sickroom and emergency treatment.
Standard Packing List：
Oximeter main unit 1unit
Adult finger SpO2 sensor 1pc
Skin surface skin TEMP probe 1pc
USB communication cable 1pc
BlueTooth Radio
VSDV/Guardian/BuleTooth Software disk 1 pc
The operator’s manual 1pc
Selectable Accessory:
Pediatric finger/Neonatal Wrap SpO2 sensor
Specifications:
1. General
Monitoring Parameters: SpO2、PR、PLETH、Pulse strength、TEMP
Signal sockets：SpO2 socket、TEMP socket、USB socket(for charge battery and transmit data)
2. Display screen
Type: 240 × 320 dot matrix color TFT LCD screen
Display area: 43mm×58mm
3. Functions
PLETH: The monitor can display PLETH waveform
Intelligent parameter monitoring screen: The monitor automatically selects the parameter measurements to display according to the probes connected to the monitor.
Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off.
Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.
Power saving: The monitor will automatic shut down to save power. The time is settable.
Trend: Storage/Review trend data up to 3888 groups, data save time being set freely
Data storage: The saved data will never be lost even if the monitor is powered off.
Communication: Transmitting the patient’s trend to a PC for display, observation, saving and printing via USB or Bluetooth wireless
4. Electrical specifications
Working Voltage: D.C. 3.7V/3000mAH
AC power adaptor
Input: AC 100 V～240V, 50/60Hz, 5VA
Output: D.C. 5V
Internal battery
Type: D.C. 3.7V/3000mAH Li-ion rechargeable battery
Run Time: 15-hour continuous operation with a new, fully charged battery (environment temperature is 25℃)
Recharge time: 8 hours
5. Environment
Temperature
Operation: 0°C ~ 45 °C
Transportation and storage: -20°C ~ 60 °C
Humidity
Operation: 15% - 95 %( noncondensing)
Transportation and storage: 10% - 95 % (noncondensing)
Altitude
Operation: 86 KPa ~106 KPa
Transportation and storage: 50KPa~106 KPa
6. Parameter Specifications
SpO2
Patient: Adult, pediatric,neonate
Range: 0% - 100%
Resolution: 1 %
Accuracy: 70% - 99%: ±2 %
0% - 69%: Unspecified
PR
Range: 0 bpm ~250bpm
Resolution: 1bpm
Accuracy: ±2bpm
TEMP
Channel: 1
Input: Body surface thermal-sensitive resistor temperature sensor
Range: 0℃～50℃
Resolution: 0.1℃
Accuracy: ±0.2℃
