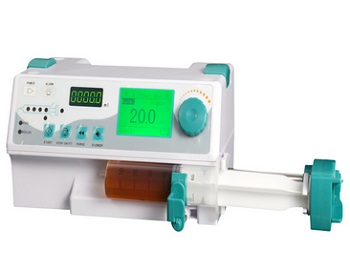

Syringe Pump
RSD-810SA
Single Channel Syringe Pump
Details:
Features
1.Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions
2.Human voice alarms for occlusion, empty, near empty, low battery, end of infusion, syringe loose,  wrong setting etc
3.Preset solution volume can greatly reduce nurse workloads
4.HD LCD Display, high capacity words, friendly user interface, dynamically display working status
5.Three work modes: Rate mode, Time Volume mode, Dosage Weight mode
6.Compatible with 10ml, 20ml, 30ml, 50/60ml syringe of any brands after calibration
7.KVO and Bolus functions

Specifications
Unique Human Voice Alarm system
The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Injection Rate:
50/60ml Syringe:  0.1ml/h~999.9ml/h   (0.1ml/h step)
1,000ml/h~1,500ml/h   (1ml/h  step)
30ml Syringe: 0.1ml/h~900.0ml/h    (0.1ml/h step)
20ml Syringe:  0.1ml/h~600.0ml/h   (0.1ml/h step)
10ml Syringe:  0.1ml/h~300.0ml/h   (0.1ml/h step)
Flow Rate Accuracy:
Within ±3% (after correct calibration)
Mechanical precision:
Within ±2%
Bolus Rate:
50/60ml Syringe:  1,200ml/h
30 ml Syringe:  720ml/h
20 ml Syringe:  480ml/h
10 ml Syringe:  240ml/h
Purge Rate:
50/60ml Syringe:  1,500ml/h
30ml Syringe:  900ml/h
20ml Syringe:  600ml/h
10ml Syringe:  300ml/h
Volume Limit:
0.1ml~999.9ml
Total Injection
Volume:
0.1ml~9999.9ml (0.1ml step)
Occlusion:
High:   800mmHg ±200mmHg     (106.7kPa±26.7kPa)
Medium: 50/600mmHg ±100mmHg  (66.7kPa±13.3kPa)
Low:    300mmHg ±100mmHg    (40.7kPa±13.3kPa )
Alarms:
Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source:
AC 100V~240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate:
1ml/h
Fuse:
F1AL/250/60V, 2pcs inside
Power Consumption:
30VA
IP Classification:
IPX4
Equipment Classification:
Class I, internal power supply, Type CF
Operating Condition:
Ambient temperature: +5℃~+40℃;
Relative humidity:
20~90%
Transport & Storage Condition:
Ambient temperature: -30℃~+55℃
Relative humidity:
≤95%
Dimension:
280mm (L) × 210mm (W) × 130mm (H)
Weight:
2.2kg (net weight)
