Digital Color Doppler

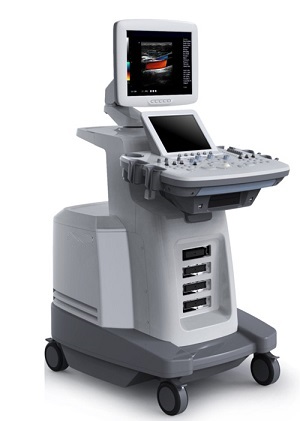

RSD-C90
Trolley Color Doppler Ultrasonic Daignostic System
Details:
Applications
Abdomen, MSK, Pediatric, Urology, Cardiac, Nerve Block, Small Parts, Vascular, Gynecology, Obstetrics

Measurements and Calculations
Abdomen, Bladder, Breast, Cardiac, renal, Small Parts, Urology, Vascular
Imaging Modes and Analysis Packages: B, Compound, Dual B, Dual Compound, Quad B, PW, Color (and Power), CW, Dual Color, Triplex, Freehand 3D, panoramic

Standard Configuration
Main unit, 3.5MHz Convex Probe, 17" LCD, 10" Touch screen

Optional modular

Tissue Doppler Imaging (TDI) , Anatomical M mode, trapezoid imaging, tissue doppler imaging, elastography, color M mode, IMT , 4D software

Options
6.5Mhz trans-vaginal probe, 7.5Mhz linear probe, 2.5Mhz phased array probe, DICOM 3.0

Specifications
1.Display mode: B, 2B, 4B, B/M, M, PW, Velocity, power(direction), Histogram, triplex/duplex
2.15 inch high resolution and brightness LED monitor
3.4 Probe connectors; 500G hard disk
4.Imaging processing technology:
5.Imaging optimization technology, Compound enhance technology;
6.Multi bean parallel processing
7.Full digital multi-beam forming device,dynamic focus, adjustable apodization aperture, multi-signal parallel processing, A/D≥12bit
8.The built-in ultrasonic workstation,DICOM3.0 interface and the corresponding software
9.Acoustic beam color doppler imaging, has the color velocity diagram, energy figure, the direction of energy figure
10.THI
11. 4 USB Ports, VGA, can connect with all kinds of printers
12.Inserted all-in-one USB-Disk to save real-time dynamic and static patient cases. Saving formats are compatible by family normal PC
13.Channel: 32, can realize 64
14.Bits in CPU:32
