Chemistry Analyzer

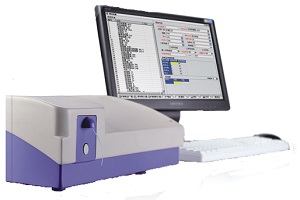

RSD-CA3003
Semi-automatic Chemistry Analyzer
Details:
Features
1.Analytical modes: Kinetic, End-point, Fixed Time, Absorbance
2.Wavelengths from 300-800nm,7 standard filters:340,405,492,510,546,578,620nm, 1 more filter optional
3.User can programmed
4.Voice prompting, making the operation interesting
5.Ingenious test times read-in, convenient for user calculation
6.Windows operation interface, figure button, mouse operation
7.Real time curve display, Automatic and manual operation mode
8.Large storage ability, up to1.000.000 results

Test contents
Liver Function:
Alanine Aminotransferase(ALT),  Glutamic-oxalacetic Transaminase(AST),  Alkalinity Phosphatase(ALP),  Total Bilirubin(TBIL),
Direct Bilirubin(DBIL), Total Protein(TP), Albumin(ALB), TTT,CHE,Nh
Renal Function:
BUN, Inosine Anhydride(CRE), Urea Nitrogen(URE),UA,CO2-CP, Y-GT
Lipids:
Cholesterol(TCHO), Triglyceride(TG),HDL-C,LDL-C
Cardiac Function:
CK,CK-MB,LDH
Immune Proteins:
IGA,IGG,IGM,C3
Other Function:
Glucose(GLU),HGB,AMS

Specifications
Test mode: User can programmed
Wavelength: 7 standard filters, 340,405,492,510,546,578,620 nm,1 more filter optional
Wavelength precision: ±2 nm
Flow cell: 32 uL quartz glass
Liquid volume:200-3000ul
Lamp: Philips 6V 10W Halogen Lamp with long life
Measurement range:0-3.000 Abs
Resolution:0.001 Abs(Display),0.0001 Abs( Calculation)
Temperature controller: Peltier 37℃, 30℃, 25℃±0.1℃
Carry over: <1%
Repeatability: <1%
Data communication: RS 232 serial cable
Temprature:10-30℃
Wet:≤80%
Power supply:220V AC±15%,110V AC±15%
             50-60 Hz 50W
Dimension:380mm (L)X320mm(W) X150mm(H)
Weight:6 KGS

Biochemical Station standard Configuration
1.CA3003 Chemistry Analyzer main machine      1
2.CA3003 Chemistry Analyzer English software  1
3.PC 1set                                     1
4.External printer                            1
