Veterinary Medical Equipment

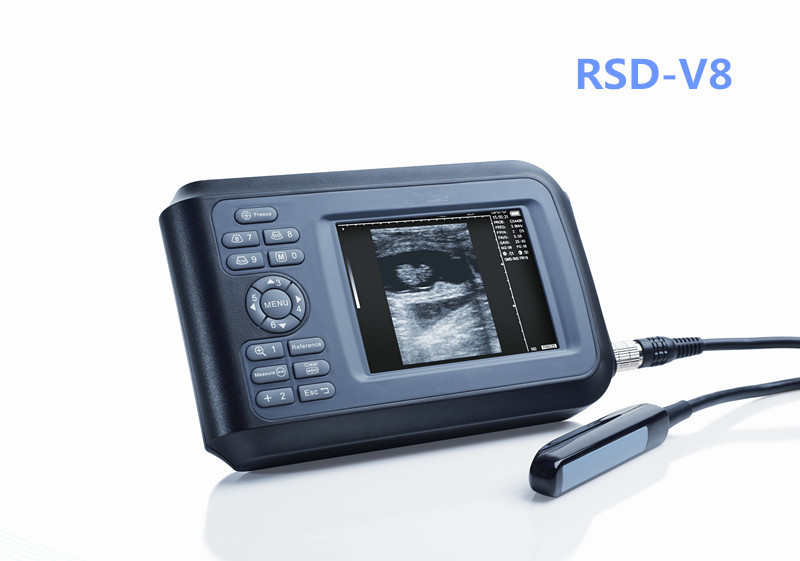

RSD-V8
Handheld Veterinary Ultrasound Scanner
Details:

RSD-V8 is a small,compact and battery powered Ultrasound Scanner for Veterinary application anywhere in the field

Features:

Easy-to-use for animal diagnosis
Ergonomically designed to sit comfortably
Splash-resistant and dust tight
Battery powered
Light weight

For animals:

Specifications:

Screen Size: 5.5 inch, TFT color LCD
Display Mode: B, B+B, B+M, M, 4B
Gray Shade: 256 levels
Scan Depth: 70~240mm, adjustable
Cine Loop: ≥ 400 frames
Built-in Memory: 64 images
Focus Position: 2 points adjustable
Annotation: date, clock, name, Sex, ID, Age
full screen editor.Battery Working Time: ≥ 3 hrsBattery Charging Time: ≥ 2hr
Net Weight: 700g
Package: metallic case in a carton box
Image Reservation: up/down, left/right

Image Procession: Coded color, GAMA, HistogramAnd Image Smoothen,
TCG: N.G (near gain) adjustable
  F.G.(far gain) adjustableO.G (overall gain) adjustable
Language: English/Chinese switchable
Measurement:: Distance, Circumference, Area,
Volume and Heart RateOB Measurement: Swine -- HL

Sheep/Goat -- USD
Cat – HD, BD
Dog – BD, GSD, CRL, HD, BD

AC adapter: 110~240V, 50/60Hz



Transducers:

6.5Rectal Linear Probe
R50/3.5MHz Convex Probe

R20/5.0MHz Micro-convex Probe
L40/7.5MHz Linear Probe

R60-80/4.0MHz Rectal Convex Probe New!

Excellent Imgage Gallery:



Handscan V8 User Manual
