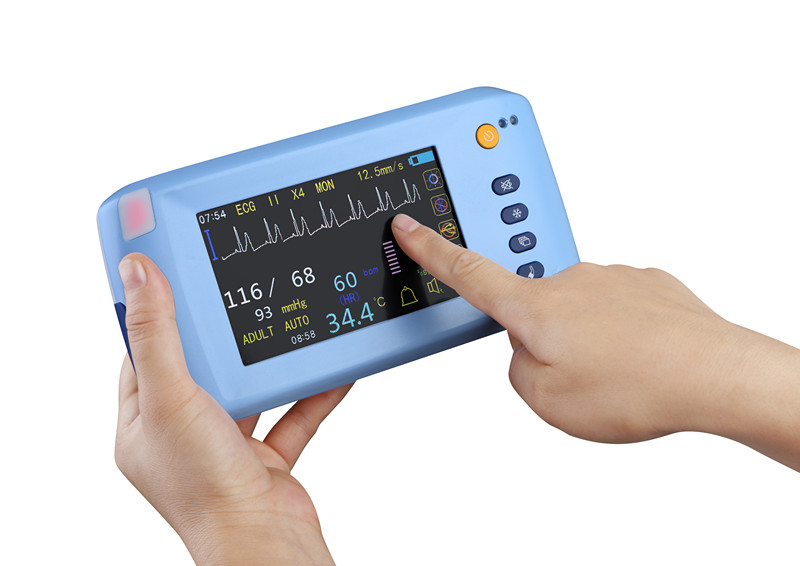

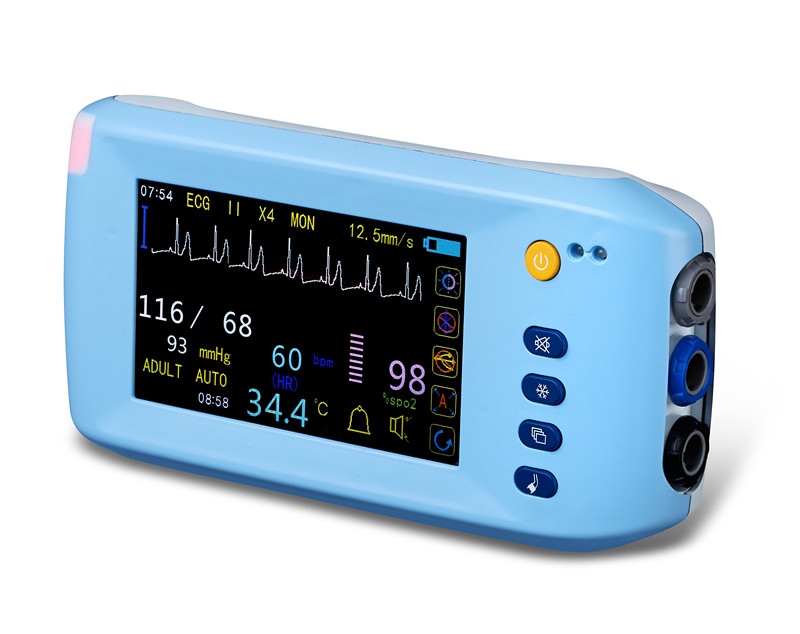

RSD5000 5 inch touch screen Patient Monitor Details： Features: 1.Touch screen,5.0 inch color TFT-LCD, simple for operating, quickly and accurately measure the data; 2.Build-in rechargeable Li-battery, up to 15 hours running time, support AC and DC power; 3.Adjustable audible and visual alarms, and sensor off alarm; 4.Long time monitoring and sleeping monitoring; 5.Easy to carry, suitable for ambulance center, has the stand for fixing;   Prior 1.Storage and review data up to 3888groups via Trend Graph and Trend List. 2.USB and Bluetooth data upload; 3.Horizontal and vertical display selectable; 4.Big font screen interface is easy to observe; 5.Back light can be adjusted; 6.Free advanced software are all standard on free（Bluetooth software; VSDV software for download the storage data; Guardian software for transmitting the real-time data and storage all data and waveform; Healthaids software for Android mobile) 7.Optional Bluetooth printer to print the waveform and data out. Technical Specifications:   1. General Specifications: Size: 209mm×104mm×47.5mm Net Weight: 655g Display Specification Measurement Display: color TFT- LCD/touch screen Power Supply Indicator: Dual-color LED (red/green) Charging indicator: A green LED   2. Power Supply AC Power Adaptor Input: 100～240VAC, 50/60Hz, 0.7A Output: DC 5V, 1.5A Battery Li-ion rechargeable battery, 3.7V/7200mAH Operating Time: 15 hours with full battery capacity. (Condition: 25℃, NIBP working period is 15 minutes) Recharge Time: 10 hours.   3. Environment Temperature Working:0°C～45°C Transport and Storage: -25°C～85°C Humidity Working:30% ～85 % Transport and Storage: 30% ～95 % (no condensation)   4. Monitoring Parameter ECG Input：3- lead ECG cable, standard AAMI cable connector Lead Selection：I，II，III Gain Selection：×1，×2，×4，×8 Sweep Speed: 12.5, 25, and 50 mm/s Frequency Response: None filter: 0.05～100Hz (-3dB), filter: 0.5～40Hz (-3dB) Calibration Signal: 1mV square wave Protection: Against electrosurgical interference and defibrillation Heart Rate Measuring Range: 20 bpm～300 bpm Renew Time: 1 time per beat Accuracy: ±1 bpm Alarm Mode: Audible and visual alarm SpO2 SpO2% Measuring Range:0%～100% Resolution:1 % Accuracy:±2 %(90%～99%), ±3 %(70%～89%),unspecified (0%～69%) Pulse Rate Measuring and Alarm Range:20～300bpm Resolution:    1bpm Accuracy: ±1bpm NIBP Method: Oscillometric Mode: Manual, Auto, STAT Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 45, 60 (min) Measuring Period in STAT Mode: 5 min Cuff Pressure Range:0 mmHg～300mmHg Pulse Rate Range:30 bpm～250bpm Measurement Rage: Adult 30 mmHg～255mmHg, Pediatric 30 mmHg～160mmHg Over-pressure Protection: Adult 300mmHg, Pediatric 220mmHg Pressure Resolution     : 1mmHg The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope. The MEAN value measured using this device is equal to that measured using blood pressure measurement device. Temperature Input: Body surface thermal-sensitive resistor temperature sensor Measuring Range: 0℃～50℃ Accuracy: ±0.1℃   5.Storage and Review Maximum Data Quantity: 3888 groups Maximum Trend Time: Continuous 129.6 hours   6.Printer (optional) Type: Thermal micro-printer Printer Paper: 58 mm thermal paper,Paper roll diameter≤Φ 33mm Interface: Bluetooth wireless interface Recording Types: Real-time printing and review data printing Power Supply: Rechargeable battery 1700mAh~2000mAh.7.2V.  Charge(discharge) ≧1000times. Charge time: 2hours Work Operation/relative humidity：0～55℃/10～80%RH Storage Operation/relative humidity：–20～60℃/10～90%RH   Packing: Standard Packing List Color palm patient monitor main unit 1 pc 3-lead ECG cable ( include surface TEMP probe) 1pc Adult finger SpO2 sensor 1 pc Adult NIBP cuff 1 pc NIBP extension tube 1 pc PC software CD 1 pc BlueTooth Radio 1pc USB cable 1 pc AC power adapter 1 pc Wall bracket 1set The operator’s manual 1 pc Selectable Accessory Pediatric NIBP cuff
