Veterinary Medical Equipment

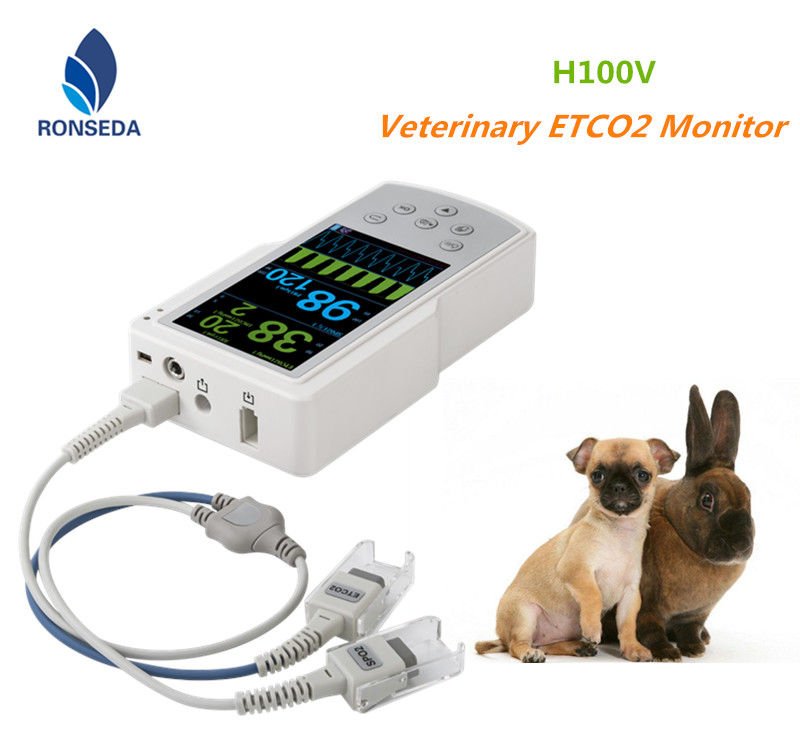

H100V
Veterinary Capnography/ETCO2 Monitor
Details:

Optional Configuration

H100V :  ETCO2 and SPO2 Monitor

H120V :  ETCO2 Monitor

Product Introduction

Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;

Update 255 hour historical data replay on PC through USB;

Equip Spo2 and Respiratory Status Analysis Software,

comprehensive data analysis,report printing;

Suitable for clinical and emergency circumstance;

SpO2, SpO2+CO2 selectable



Application Fields

Monitoring the patient’s respiratory statusduring CPR

Assists in determining when to intubate or extubate

Verification of ET tube placement

Alerts if accidental extubation occurs

Verification of ventilation during transport

Specialized date export function, help analysing sleep condition



Product Specification

Measure Range :

SpO2 : 0 - 100 %

Pulse rate : 35 - 254 BPM

ETCO2 : 0 - 150 mmHg

Respiratory rate : 3 - 120 BPM



Electrical Safety

Adapter Input AC 220V

Adapter Output :DC 12V, 2A

Inner Battery :Chargeable Lithium Battery, last for 10 hours,

Charge time : 4 Hour

Demension :192 X 106 X 44 mm

Weight :650g
