Ultrasound Scanner
RSD-U860

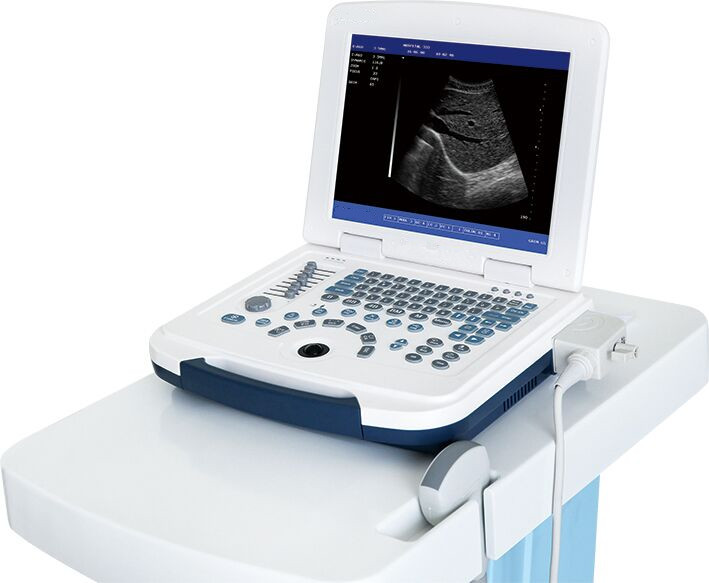

Full Digital Laptop Ultrasound Scanner
Details:

Features:

A type of high array, high definition, multi-function full-digital real 80 elements laptop ultrasonic diagnostic apparatus.
Light and portable, more clearer,delicate and smooth image, convenient to operate, and powerful electrical power ability supports the machine for consultation in various environment of cities, towns, outdoor.

A variety of charging to ensure the examination consultation under different environments.

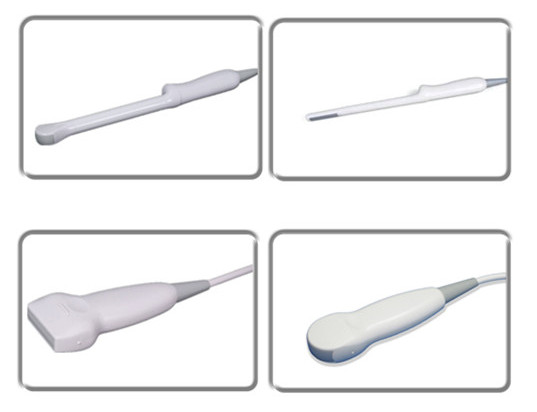

Probes: 80 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe, visual artificial abortion probe
Supernormal battery life 5-8 hours

12.1 inch LED
 shows the images with more flexible ways.
USB port: storable and readable
First-class digital imaging technology, more clearer image:

Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability

Technical Specification:

Scanning mode: convex / linear / micro-convex
Probes: 80 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe, visual artificial abortion probe
Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Monitor: 12 inch high resolution LED
Display mode: B, B+B, B+M, M, 4B

Probe Depth: 16 levels
Probe Frequency: 5 levels

Main gain: 0-100%
8 TGC: adjustable
Focus: 4

Hard disk :8G

Image storage: 4920 images
Pseudo color: 0-7
Scanning area(angle): 3 levels
Edge enhancement: 0-3
Linear correlation: 0-5
Gamma correction: 0-7
Frame correlation: 0-3
Dynamic range: 0-135
Cine loop: 512 frames
Body mark: 97 kinds
U Disk support: FAT32 format

Image reversal: up/down, left/right, black/white

Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement

OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI

OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve

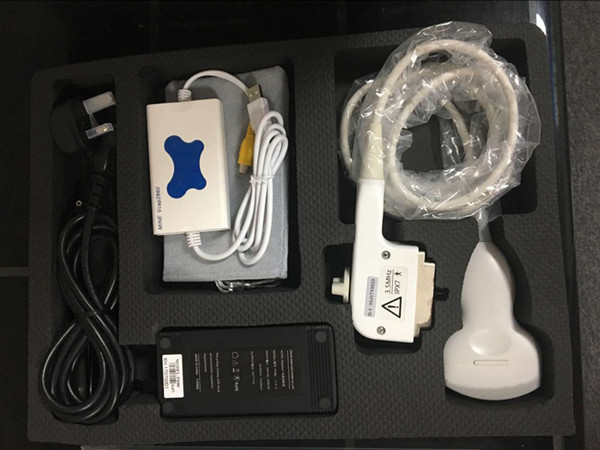

Standard Configuration:

12.1 inch LED display

3.5MHz Multi-frequency convex probe(2.0MHz-5.0MHz)

Aluminum plastic multi-layer package

Options:

Ultrasound image workstation

6.5MHz High frequency Trans-vaginal probe (5.0MHz-8.5MHz)

7.5MHz High frequency Linear probe(5.5MHz-9.0MHz)

5.0MHz Micro-convex Probe(4.0-7.0MHz)

7.5MHz Rectal probe(5.5MHz-9.0MHz)

Trolley

Packaging:

Aluminum plastic multi-layer package.

Laptop size: 33*29.5*6.5 cm

package size: 47.5*40*21.5 cm

net weight: 4.3kg

gross weight: 8kg

Aluminum plastic multi-layer package:44.5*37*18.5cm, 2.95kg .

The Aluminum plastic multi-layer package is for free, you can choose it or not.
