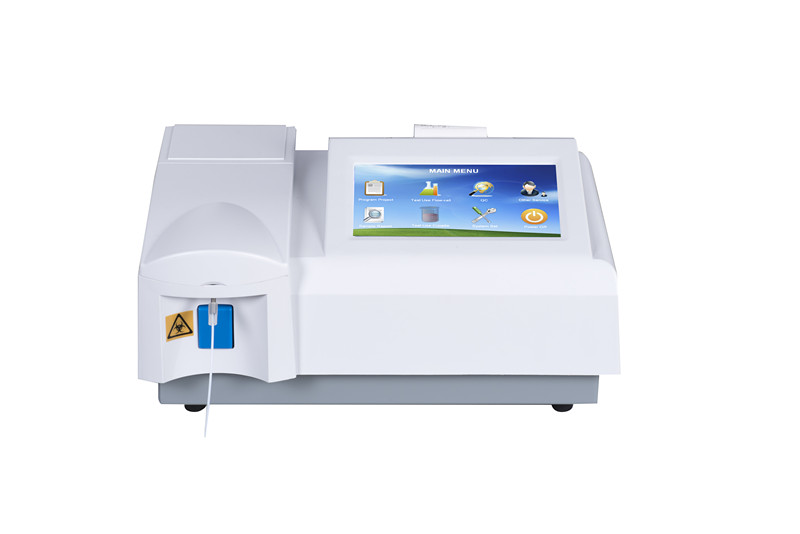

Chemistry Analyzer
RSD-CA2100
Semi Automatic Chemistry Analyzer
Details:

 Features

1.7 inch Color LCD , Touch screen

2.Flow cell and Cuvette test mode compatible

3.Real time curve showing

4.7 wavelength , 90 test item pre-programmed

5.Memory for 10,000 sample results

6.Light source hibernate function making lamp life longer

7.RS232 interface, PC connecting



Test contents

Liver Function:

Alanine Aminotransferase(ALT),  Glutamic-oxalacetic Transaminase(AST),  Alkalinity Phosphatase(ALP),  Total Bilirubin(TBIL),

Direct Bilirubin(DBIL), Total Protein(TP), Albumin(ALB), TTT,CHE,Nh

Renal Function:

BUN, Inosine Anhydride(CRE), Urea Nitrogen(URE),UA,CO2-CP, Y-GT

Lipids:

Cholesterol(TCHO), Triglyceride(TG),HDL-C,LDL-C

Cardiac Function:

CK,CK-MB,LDH

Immune Proteins:

IGA,IGG,IGM,C3

Other Function:

Glucose(GLU),HGB,AMS



Specifications

Test mode: Kinetic, End point, Two point, Absorbance

Wavelength: 7 standard filters, 340,405,492,546,578,630 nm,1 free position

Wavelength precision: ±2 nm, width ≤ 10nm

Absorbance range: 0~4.500 Abs

Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs

Carry over: < 1%

Repeatability CV: < 1%

Incubator: 37℃,30℃,25℃

Precision : ±0.1℃

Sample volume: 0~3000 uL (≥500uL recommend)

Data Storage: ≥10000

Quality control curve: SD,CV%,L-J quality control curve for every test item

Flow cell: 32 uL quartz glass, 10 mm

Lamp: Philips 6V 10W Halogen Lamp with long life

Screen: 7 inch color LCD

CPU: ARM series high speed micro CPU

Printer: Internal thermal sensitive printer

Interface: RS-232

Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%

Power supply: 100~240VAC50-60Hz100VA

Dimension: 340(L)*270(W)*160(H)

Weight: 5 kg
